Autel Power Scan PS100 Car Circuit Tester, Universal 12V 24V Automotive Power Circuit Probe Kit with 40FT Cable, AC/DC/Continuity/Probe/Signal Test, Activate Component Electrical System Tool
Autel Power Scan PS100 Car Circuit Tester, Universal 12V 24V Automotive Power Circuit Probe Kit with 40FT Cable, AC/DC/Continuity/Probe/Signal Test, Activate Component Electrical System Tool
Couldn't load pickup availability
SPECIFICATIONS

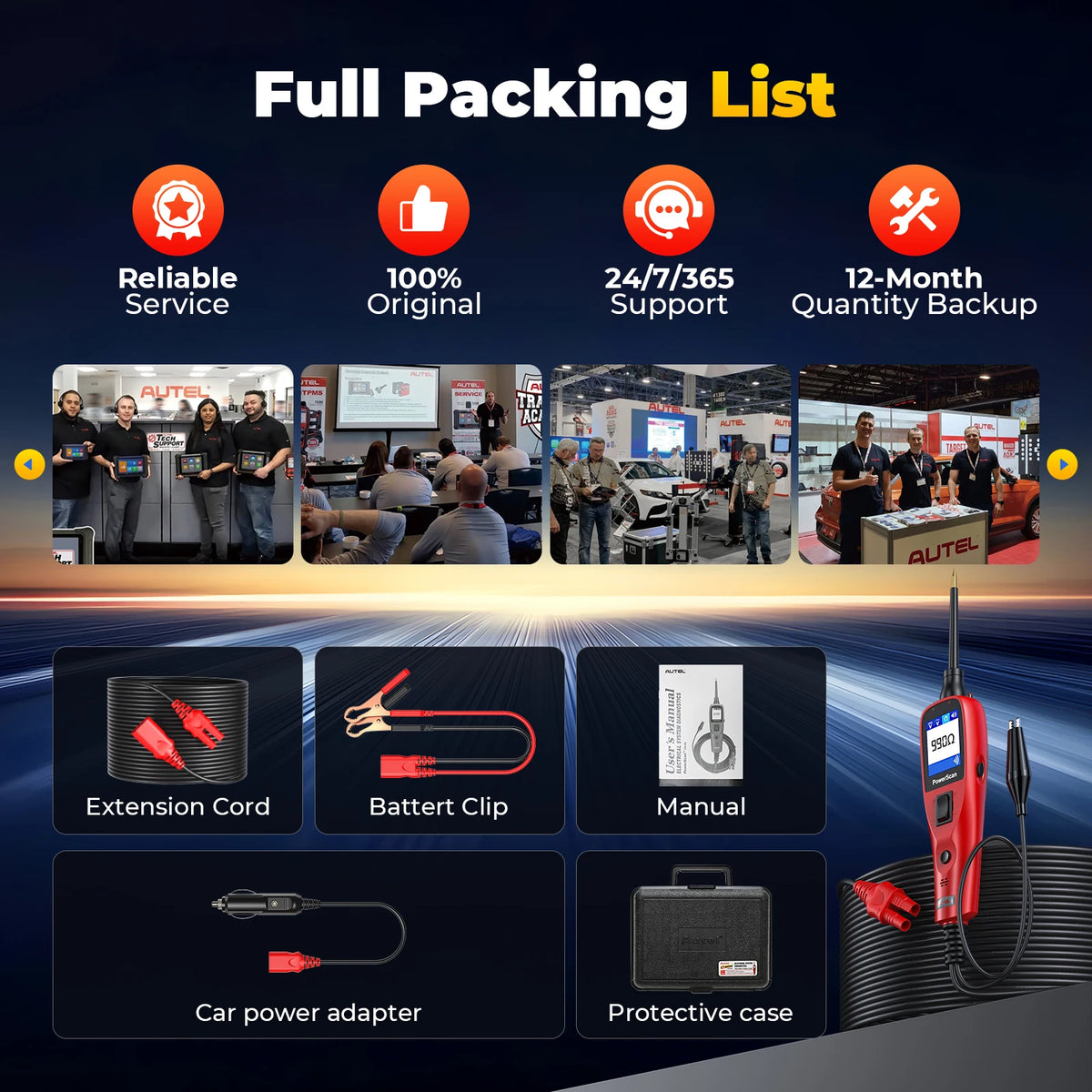

Accessories: Carrying Case, Clamps, Probes, User Guide
Brand Name: Autel
Certification: RoHS,CE
Communication Interface: Others
Display: TFT color display (160 x 128 dpi)
Electronic: No
External Power: 12.0 or 24.0 V power provided via vehicle battery
External Testing Certification: ce
Features 3: Instantly identifies positive, negative and open circuit
Features 4: Tests for bad ground contacts instantly
Features 5: Quickly track and locate short circuits
Features 6: Instantly checks continuity of switches, relays and diode
Features 7: Circuit breaker protected
Features 8: Read voltage, current and resistanc
Features1: Digital Display, Relay Component Testing, Voltmeter
Features2: Analog Display, Continuity Testing,tester automotive
GW: 0.726 kg(1.6lb)
High-concerned chemical: none
Is Batteries Included: Yes
Item Type: Other
Item Weight: 1.3
Length\Width\Height: 126mm(4.96")\46.5mm(1.83")\35mm(1.38")
Material: Plastic
Model Name: PS100
NW: 0.105kg (0.23lb)
Operating Temperature: 0 to 60°C (32 to 140°F)
Origin: Mainland China
Product Safety Information/Warning: WARNING: CHOKING HAZARD - Small parts. Not for Children under 3 years.
Voltage: 12V/24V
Wireless Support: No
Autel Circuit Tester: PowerScan PS100

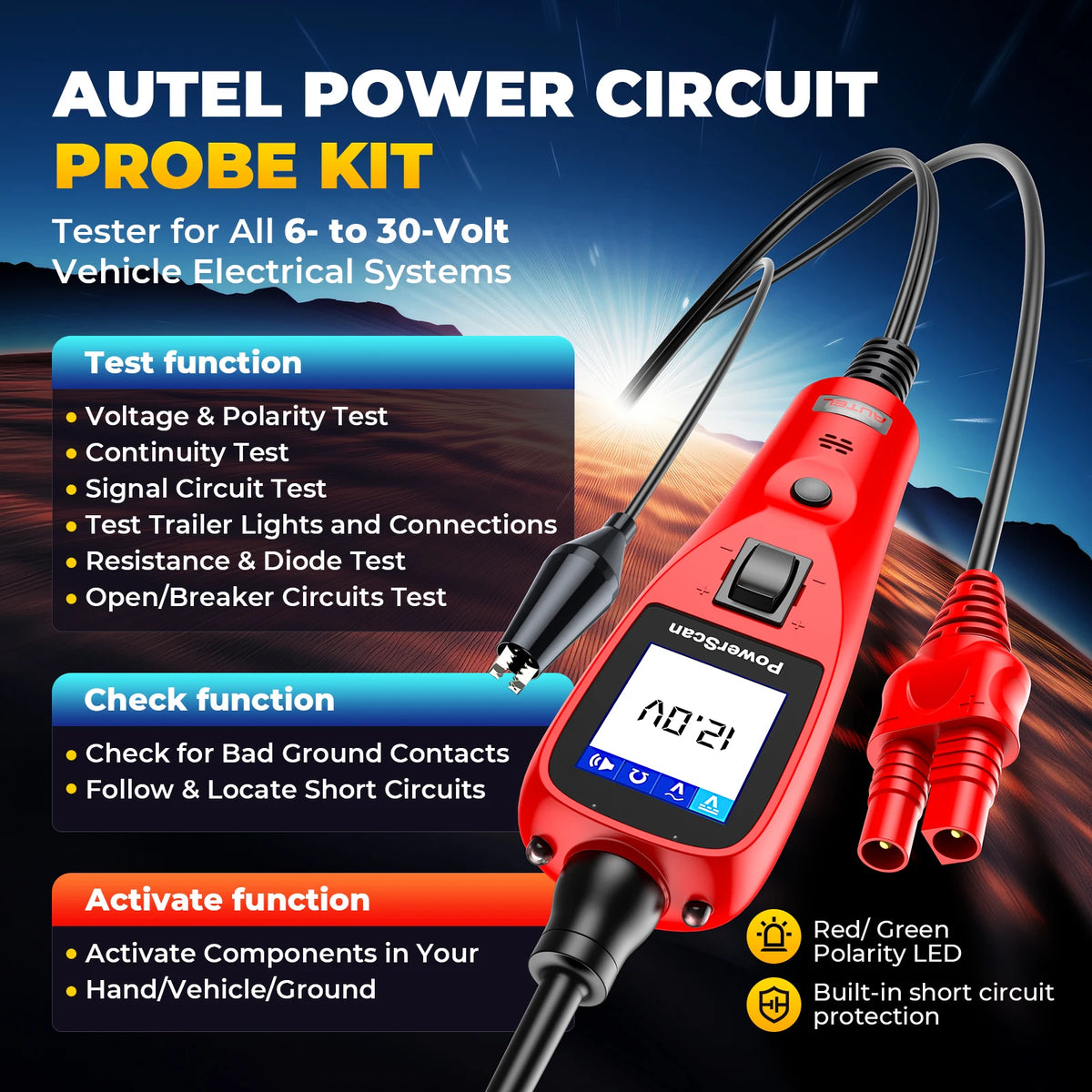

The launch of Autel PowerScan PS100 is to offer quick complete diagnose solution for all 6- to 30-volt vehicle electrical systems, featuring AVOmeter, test light, built-in flashlight, short circuit indicator, relay/component tester, continuity tester and bad ground indicator, the PowerScan is powerful yet affordable, allowing users to check circuitry in one single step. A good-to-have tool for technicians.

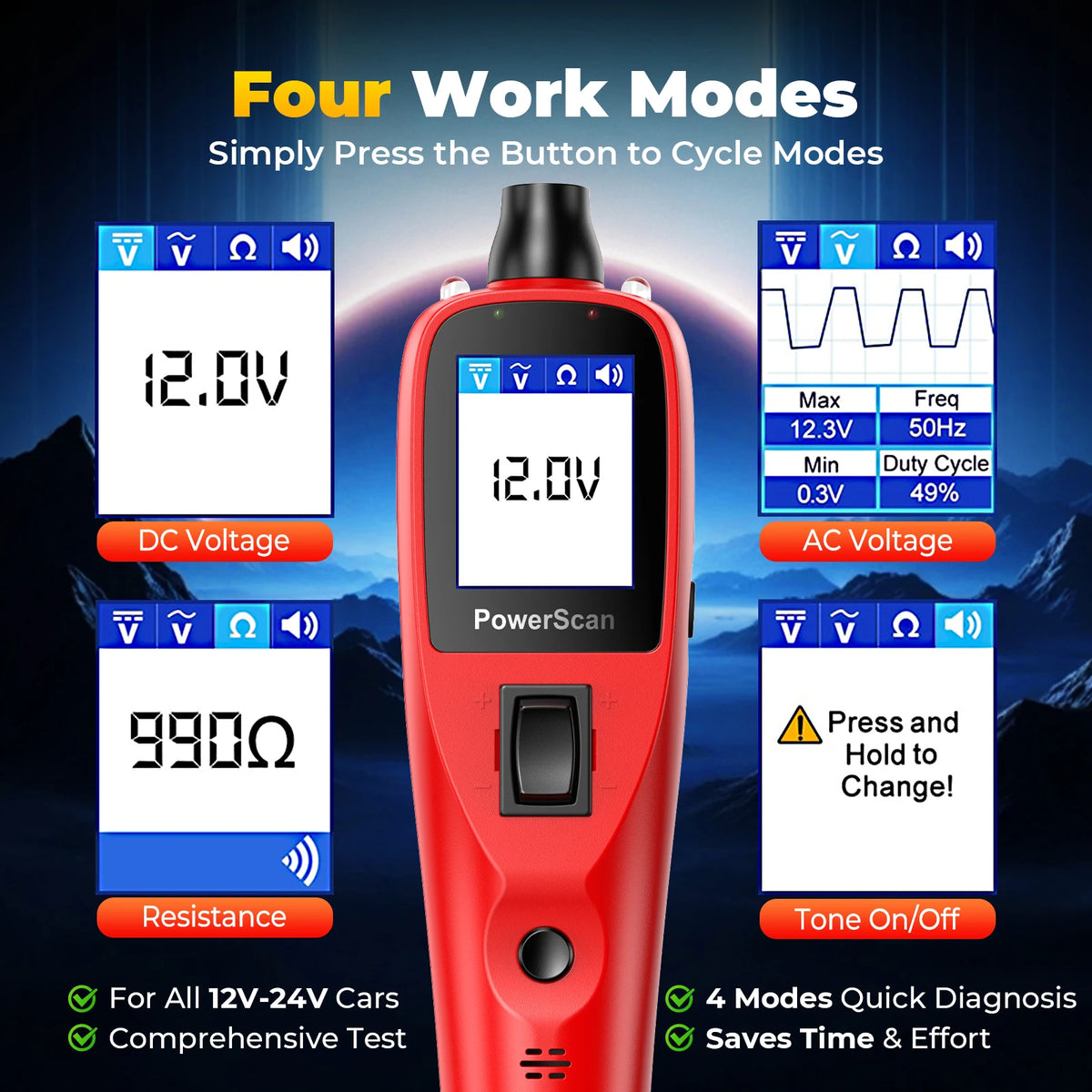

Easy Switching 4 Working Modes
Autel PS100 Power Circuit Probe Kit support four working modes: DC voltage, AC voltage, Resistance and Tone On/Off. In AC voltage, PS100 can read the Max. voltage, the Min. voltage, frequency and duty cycle; In Resistance mode, it reads the resistance between the tip and auxiliary ground lead. In Tone On/Off, you can turn off the annoying noise when the tool will be connected to circuits for a long time. Quick switching among 4 modes by pressing mode button.
Compnent Activation Function
Autel PS100 support component activation in 3 different scenario: in the hand, in the vehicle & with ground. By generating activation signals for the components, you can judge whether the components are in good condition, such as lights, motors, wipers, radiator fans, relays, and fuel injectors, etc. You can also use Autel PS100 circuit checker to find bad ground contact. The response of LED lights can intuitively tell you whether it's true ground.

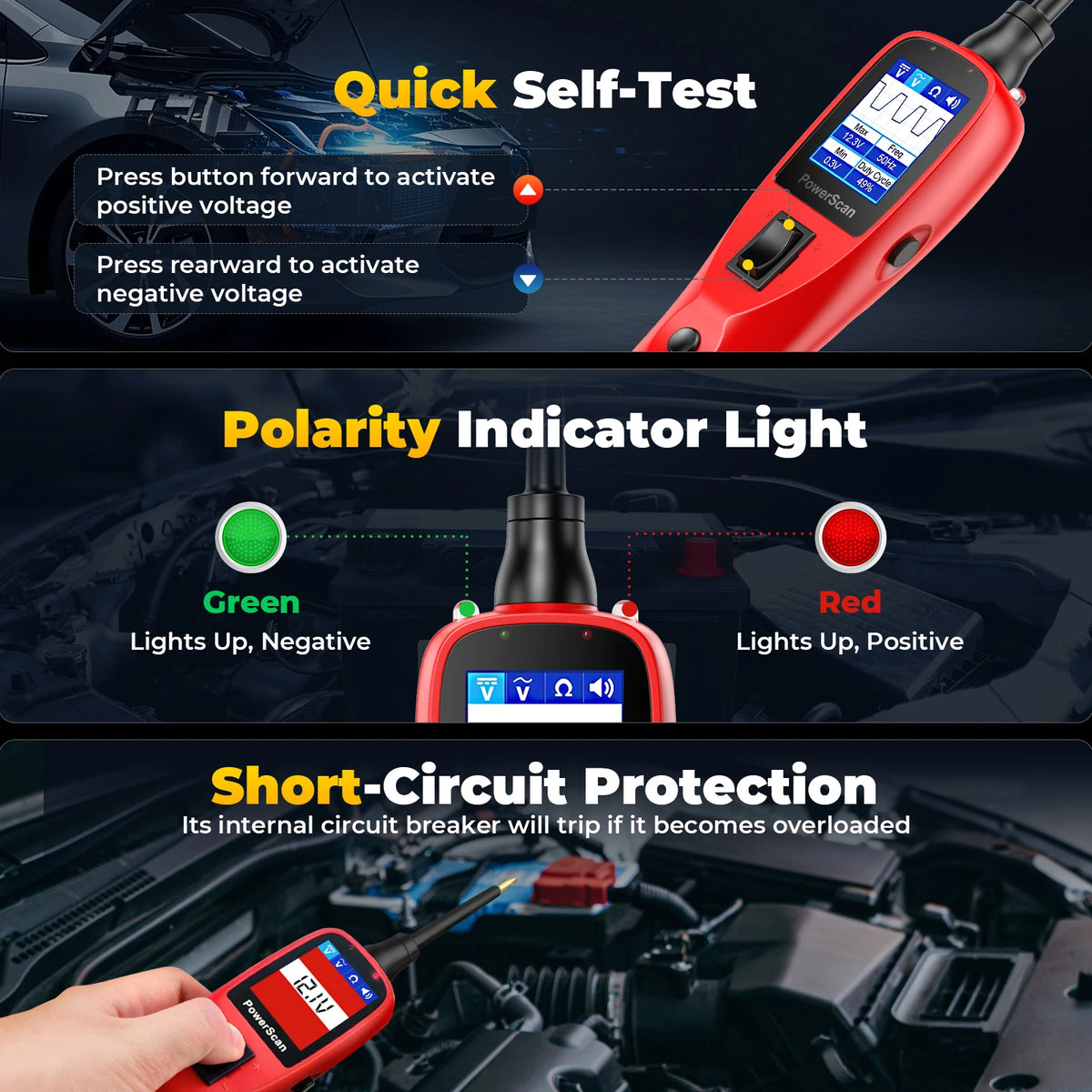

Polarity Quick Identification
In just a few seconds, Autel PS100 can checks component continuity and identifies positive, negative and open circuits. When the positive terminal is connected, the red LED light is on, accompanied by a beep. When the negative terminal is connected, the green LED lights up, along with low pitched tone. If it is an open circuit, the LED light will not light.
Overload Protection Quick Self-Test
Autel PowerScan PS100 is short-circuit protected. Its internal circuit breaker will trip if it becomes overloaded. The circuit breaker is a valuable test tool as well as a safety measure to protect the tool from overload. To protect your components, Autel PS100 can also perform a quick self-test. After flipping the switch forward or backward, the LED light and tone will respond to quickly check its actual operating status.
Built-in Flashlight 20ft Extension Cable
Autel PS100 comes with built-in flashlight for convenient detection in dark or at night. The 20 feet extension cable ensures provides excellent ac
